Pure mechanical structure, measuring the degree of loss after the bending of the electric bushing

The casing diameter: 16mm, 20mm, 25mm

The total sample bending angle: 180 degrees

Function and execution standard of rigid casing bending test machine:

Hard casing bending test machine is suitable for the bending test of insulating material, such as electrical insulation material, which is used to test the loss of the sample. The instrument is in line with the requirements of JG3050 standard for building insulation electrical bushing and fittings.

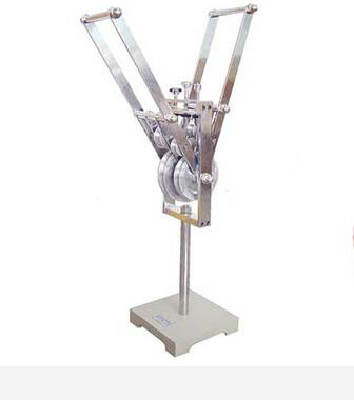

KGTW series hard casing bending test machine

Technical parameters of rigid casing bending testing machine:

Diameter of casing pipe: 16mm, 20mm, 25mm;

2. The total angle of the sample bending: 180;

3. Outline size: 410mm * 220mm * 780mm;

1) required space: before and after 1.0m, about 1 m.
