- Size: 60
- Place of Origin: Chengde, Hebei, China
- Brand Name: k-test
- Model Number: KJL
- Weight: 300.000 kg
Tensile impact testing machine:
Tensile impact testing machine is mainly used for hard plastics, reinforced nylon, glass steel, ceramics, cast stone, determination of non-metallic materials, impact toughness of electrical insulating materials etc.. The testing machine is an ideal test equipment for chemical industry, scientific research institutes, colleges and universities, quality inspection departments, professional manufacturers laboratories and other units. Tensile impact testing machine is a simple structure, convenient operation, accurate and reliable data impact test machine.
Tensile impact testing machine:
Meet the requirements of GB/T 13525 and ISO 8256 standards.

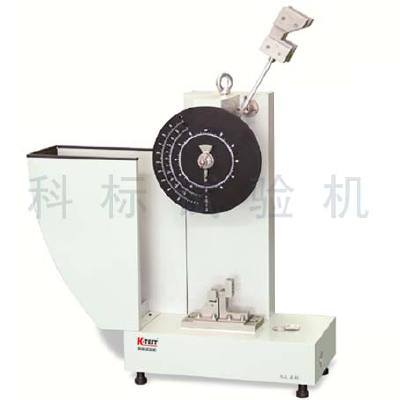

KJL mechanical dial type tensile impact testing machine
Technical parameters of tensile impact testing machine:
1) impact speed: 3.8m/s
Impact energy: 15J, 25J,
3) dial index value: 0 ~ 0.15J 15J
0 ~ 0.25J 25J
4) the lifting angle of the pendulum hammer: 150
5) strike center distance: 395mm
(6) using temperature: (15 ~ 35)
7) sample size: length 80 2mm, width 15 0.5mm, thickness p= <4mm< ""
Free length between fixtures: 30 2mm
(8) power supply: 220VAC 10% ~ 50HZ 200W 220VAC-15% (single phase three wire system)
Tensile impact testing machine configuration:
1) a host
2) impact swing
(3) the weights of two pairs (upper and lower 1 pairs)
4) a pair of movable jaw tension
Six) in the 5 corners of the 4mm, 5mm, 6mm each one
6) a screwdriver (4 ")
7) power cord
8) anchor seat four
