Function and application range of viscosity number measuring instrument:

The determination of the number of the main components of polyvinyl chloride resin or the main component is the determination of the viscosity number of the ketone dilute solution of the copolymer of vinyl chloride. Is a chemical industry, scientific research units, plastic profile production plant for resin quality testing of the ideal test equipment.

Viscosity measuring instrument is mainly composed of constant temperature water bath and viscometer composition, temperature control temperature, high precision, easy to use, stable and reliable performance. Temperature display using LED digital tube, intuitive and clear, no visual error. With cooling function.

Standard for the implementation of a viscosity meter:

Meet the requirements of GB/T3401 standard.

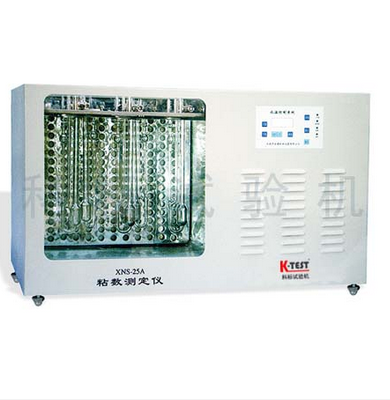

KNA series viscosity tester

Technical parameters of KNA series adhesive number measuring instrument:

1) the effective volume of the constant temperature water tank: 400mm * 250mm * 320mm

2) constant temperature: 25 0.050C

3) display error: 0.05

4) temperature fluctuation degree: 0.05

5) test frame number: 5

6) heating power: 1kW refrigeration power 300W

7) ambient temperature: 21 C 3

8 required space: before and after 0.5m, the left and right 1.0m

9) power supply: 220VAC 50Hz 1200VA

Size: * 810mm * 430mm * 470mm

Configuration of KNA series viscosity meter:

1) a host

2) five Ubbelohde viscometer

3) the fixed frame five Ubbelohde viscometer

4) a fixed tray

5) a temperature sensor

6) power cord

7) anchor bolt four
