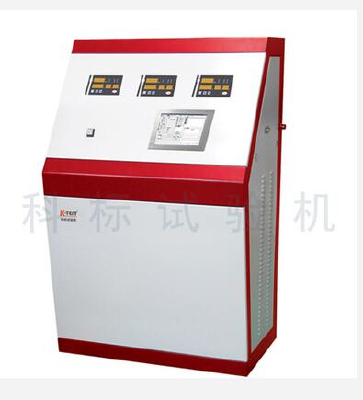

Industrial touch screen type hydrostatic testing machine features:

Suitable for different diameter and material manufacture of fluid conveying plastic pipe for pipe hydraulic transient burst and long-term constant pressure resistance of thermoplastic pipe. Is the scientific research institutes, quality inspection departments and pipe manufacturers must have the necessary testing equipment. Each of the five stations as a control module, each module is provided with a microcomputer for receiving a control command of embedded PC machine, pressure, logic control and data acquisition, and through serial bus control to keep the information back to the PC machine, automatic pipe diameter and material characteristics of discrimination, making automatic boost scheme and algorithm boost, speed, pressure stability, volume expansion rate is high, to ensure that the 100% test successfully.

Blasting test of pipelines can be made to the long-term hydrostatic test tube, but also can be used for thermal stability test of thermoplastic pipe hydrostatic condition, at the same time with the automatic identification of pipe expansion coefficient by using different methods to control the pressure of leading function. Multi stage storage pressure control, fast response, to ensure the stability of the pressure control; the program can extend the service life of the solenoid valve.

Industrial touch screen type hydrostatic testing machine technical parameters:

1 pressure control range: 0.2 ~ 10.0MPa arbitrary set; can set other pressure units such as: PSI and bar;

2 pressure control accuracy: the default -1% ~ 2%, can also be arbitrarily set;

3 pressure display resolution: 0.001MPa, 1PSI or 0.01bar;

4 measurement range: 0.25% ~ 100%FS;

5 values allow the error limit: within 0.3% of the value shown;

6 time: 0 to 10000 hours, you can use the timing and countdown settings, the minimum set time gradient is 1 minutes;

7 module number: 1 ~ 20 (each module has 5 separate units);

8 host data storage time: offline can be saved for 7 days;

9 automatic identification of pipe characteristics, leakage warning, rupture identification, real-time monitoring, power failure data storage, call data recovery, test results storage, print and sample pretreatment and other functions;

10 test diameter: 2mm ~ Phi Phi 1600mm;
