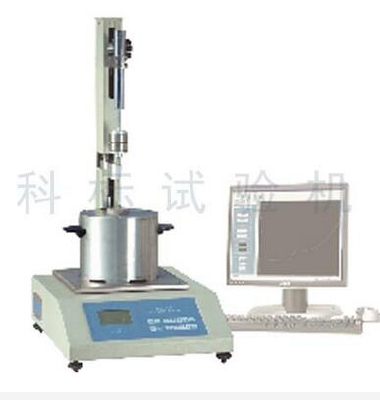

KWR series thermal mechanical analyzer product model: KWR series thermal mechanical analyzer

The structure is clear, concise, easy to operate

The high technology content, software function, wide measuring range

The temperature control range: room temperature to 500 DEG C or -100 to 500 DEG c;

Function and scope of thermal mechanical analyzer:

Analytical instrument for determining polymer glass transition temperature (Tg) and viscous flow temperature (Tf). This product by heating the sample heating rate of the sample under the load of constant small with the increase of temperature deformation, temperature deformation curve measurement, by analyzing the temperature deformation curve of the specimen, the glass transition temperature of the sample (Tg) and flow temperature (Tf). The utility model has the advantages of high technical content, strong software function, wide measuring range, accurate measurement, stable performance, simple operation, etc..

Thermal mechanical analyzer can be divided into two types: teaching type and scientific research type. The teaching structure is clear, simple and easy to operate, especially suitable for teaching experiment. Research type compact structure, wide measurement range, diverse measurement methods, powerful analysis, accurate and reliable data, is a very good analytical instruments. Our thermo mechanical analyzer performs GB/T 11998 standard.

KWR series thermal mechanical analyzer

Thermal mechanical analyzer technical parameters:

1) deformation measurement range: 4mm;

2) deformation measurement resolution: 0.001mm;

3. Temperature control range: room temperature ~ 400 DEG C or -100 C ~ C = 400 c;

4. Heating rate: 0.5 /min, 1 /min, 1.2 /min, 2 C /min, /min, 5 C /min, 10 C /min;

5. Cooling rate: -1.0 /min, -1.2 C /min, -2 C /min, -5.0 C /min;

6). The heating rate of less than 0.5 DEG /min error;

Temperature measurement accuracy: 0.5 C 7;

8 temperature control accuracy: 1;

9. Load range: 240g, 400g, 900g, 1400g;

10). Methods: the liquid nitrogen refrigeration, with liquid nitrogen refrigeration device

11. Instrument size: 320mm * 400mm * 680mm

11) required space: before and after 0.5m, about 1.0m

Configuration of thermal mechanical analyzer:

1) a high-precision temperature sensor

2) a differential displacement sensor

3) accessory boxes (weights and compression clamps)

4) a desktop computer brand

5) a color inkjet printer

6) test host

Difference of main technical parameters between models of thermo mechanical analyzer:

Type KWR-500 temperature range: room temperature ~ 400 C

KWR-500A temperature range: -100 to 400 DEG C, liquid nitrogen for consumables, the self
