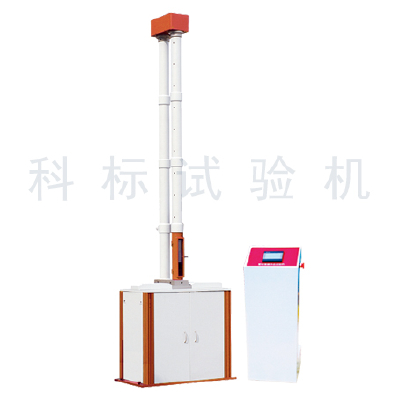

Tube drop hammer impact test machine

Tube drop hammer impact test machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: tianjin
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-04-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  60
  • Place of Origin:  Chengde, Hebei, China
  • Brand Name:  k-test
  • Model Number:  KJL-300
  • Weight: 1500.000 kg

Tube drop hammer impact test machine is mainly used for pipes, plates, helmets and other impact test; standard: ISO3127, GB/T14152, GB/T14153, GB6112, GB2812 Standard Test method, arbitrary impact height, automatic grabbing hammer, and has two functions of anti shock, zero.

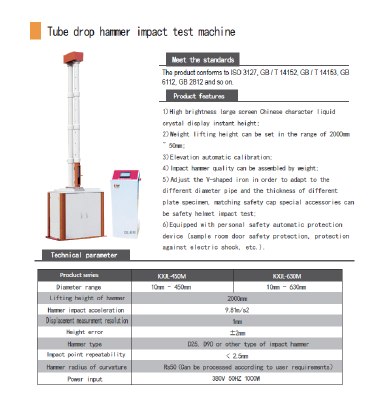

KJL-300 series tube drop hammer impact test machine

KJL-300 series tube drop hammer impact test machine product advantage:

(1) using the high brightness (LED) digital tube display real-time height;

2) weight lifting height can be set arbitrarily, impact height can be set in the 50mm ~ 2000mm range (two times the height of anti impact device within the scope of the capture rate was 100%);

3) elevation automatic calibration;

4) impact hammer weight can be assembled by weight;

5) the capture rate of the two shock proof device is as follows: 100%;

6) adjust to V type plate specimen with different diameters and different tube thickness, impact test optional safety helmet accessories can be used for safety helmet;

7) hammer fall for free fall (no friction introduced);

8) can provide a hammer to meet other standard body according to the order requirement;

9) anti two impact device using pneumatic capture;

10) the sample room is communicated with the laboratory, the temperature is same as the experiment environment temperature;

KJL-300 series of pipe hammer impact testing machine technical parameters:

1) the normal working environment temperature: 10 ~ 35

2) hammer body to enhance the impact of the maximum height: 2000mm;

3) hammer body to enhance the maximum lifting speed: 12m/min;

Fall acceleration of impact hammer: 9.81m/s2;

Displacement measurement resolution: 1mm;

6) height error: 2mm;

7) diameter range: 20mm~630mm;

8) applicable to the detection of plastic products, such as sheet metal, safety helmet, etc.;

9) double screw support, support stable;

10) impact point repeatability: < 2.5mm;

11) hammer types: D25, D90 or other type of impact hammer;

12: (Rs50) the hammer radius of curvature can be processed in accordance with user requirements);

13) the maximum sample length: 300mm;

Size: 1100mm (D) 950mm () 3650mm (W) (H);

15) the test specimen support frame, the force sensor and the sensor supporting instrument as the optional accessories,


  • Size:  60
  • Place of Origin:  Chengde, Hebei, China
  • Brand Name:  k-test
  • Model Number:  KJL-300
  • Weight: 1500.000 kg

Tube drop hammer impact test machine is mainly used for pipes, plates, helmets and other impact test; standard: ISO3127, GB/T14152, GB/T14153, GB6112, GB2812 Standard Test method, arbitrary impact height, automatic grabbing hammer, and has two functions of anti shock, zero.

KJL-300 series tube drop hammer impact test machine

KJL-300 series tube drop hammer impact test machine product advantage:

(1) using the high brightness (LED) digital tube display real-time height;

2) weight lifting height can be set arbitrarily, impact height can be set in the 50mm ~ 2000mm range (two times the height of anti impact device within the scope of the capture rate was 100%);

3) elevation automatic calibration;

4) impact hammer weight can be assembled by weight;

5) the capture rate of the two shock proof device is as follows: 100%;

6) adjust to V type plate specimen with different diameters and different tube thickness, impact test optional safety helmet accessories can be used for safety helmet;

7) hammer fall for free fall (no friction introduced);

8) can provide a hammer to meet other standard body according to the order requirement;

9) anti two impact device using pneumatic capture;

10) the sample room is communicated with the laboratory, the temperature is same as the experiment environment temperature;

KJL-300 series of pipe hammer impact testing machine technical parameters:

1) the normal working environment temperature: 10 ~ 35

2) hammer body to enhance the impact of the maximum height: 2000mm;

3) hammer body to enhance the maximum lifting speed: 12m/min;

Fall acceleration of impact hammer: 9.81m/s2;

Displacement measurement resolution: 1mm;

6) height error: 2mm;

7) diameter range: 20mm~630mm;

8) applicable to the detection of plastic products, such as sheet metal, safety helmet, etc.;

9) double screw support, support stable;

10) impact point repeatability: < 2.5mm;

11) hammer types: D25, D90 or other type of impact hammer;

12: (Rs50) the hammer radius of curvature can be processed in accordance with user requirements);

13) the maximum sample length: 300mm;

Size: 1100mm (D) 950mm () 3650mm (W) (H);

15) the test specimen support frame, the force sensor and the sensor supporting instrument as the optional accessories,
